| ブランド名: | Gonghexiang |
| モデル番号: | SD80-L53X2 |
| MOQ: | 1セット |
| 価格: | 交渉可能 |
| 支払条件: | T/T |
| 供給能力: | 1セット/45営業日 |
Brief Machine Introduction

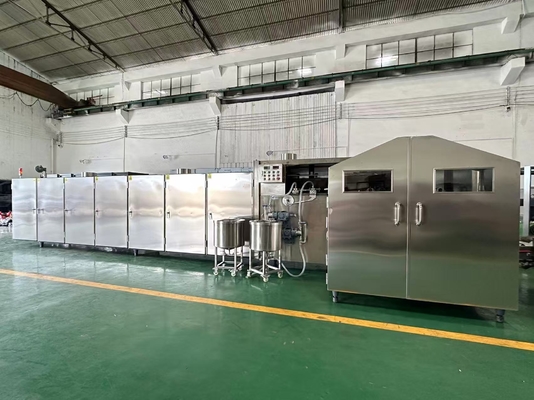

Our SD80-L53x2 Sugar cone baking equipment is built with a durable steel structure and #304 stainless-steel casting, controlled by SIEMENS/DELTA PLC system. With a capacity of 5,500-6,000pcs per hour, it ensures stable production of standard 110mm size sugar cone (in length) for ice cream filling.
By using special choosen heat-resistant cast iron for our baking plates, which provides excellent insulation and reduces gas consumption to as low as 14-16kg per hour. Help our customers save energy and reduce costs
Equipped with two batter injection system, our machine can make both one color cone and two-tone cone. Make customers' products more diverse.
Standard sugar cone size 110mm-115mm, fit for most ice cream market.
The fully automated design streamlines production, reduces manpower costs, and ensures stable product quality.
Machine Model: SD80-L53x2
Machine Technical Parameters
| Product name | Sugar cone,ice cream cone baking machine |
| Model Number | SD80-L53x2 |
| Control System | SIEMENS PLC |
| Input Power | 3.37 |
| Voltage | 380v |
| Production Capacity | 5500-6000pcs/hour |
| LPG Consumption | 14-16kg/hour |
| No. of baking plates | 53pcs |
| Standard Configuration | Batter mixer*1,Heat preservation batter bucket*1,5 meter Conveyor,1.5 meter Storage table |
| Warranty | 1 Year |
| Baking plate size | BIG baking plate 240mm x 320mm |
| Machine Dimension | 11 x 2.1 x 2 (meter) |
| Weight of Machine | 7000kgs |
Sugar Cone Specification
| Cone Length | 110-115 (mm) |
| Cone Angle | 20°-24° |
| Cone Diameter | Depends on the length and angle of your cone |
| Cone Color | Both 1-Color and 2-color |
Customization Service
Our wafer cone machines can be fully customized to meet your specific production needs:
➤ Cone specifications – size, shape, color, and production capacity can be adjusted according to your requirements.
➤ Factory layout solutions – equipment design and conveyor systems can be tailored to fit your plant dimensions and layout, helping you save valuable space.
➤ Flexible design – whether you need higher capacity, special product shapes, or space-saving configurations, we provide the right solution.
Key Points
✅ Standard cone size 110mm-115mm
✅ Fit for both single color cone and two-tone color cone
✅ High capacity up to 6000pcs per hour
✅ Heat-resistant baking plate design for enengy saving
“We are committed to providing reliable equipment and professional service to help our partners grow.”
Contact us Now
Guangzhou Jianxiang Machinery Co., Ltd
Katrina WhatsApp: +86 159 1318 8664
